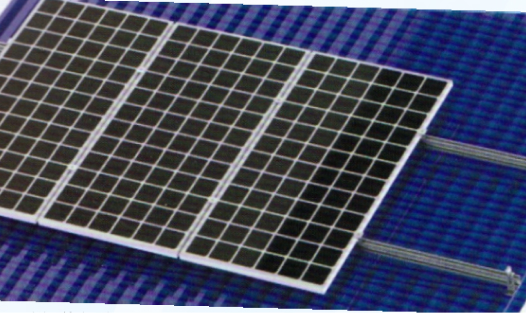

Color steel tile photovoltaic support system PGT4
Color steel tile photovoltaic support system PGT4 This product has high pre installation characteristics and is suitable for the installation of various color steel tile roofs. Comprehensively optimize the strength of the system support square tube, improve the overall stability of the system, and further optimize the longitudinal beam structure. Professional structural design ensures the system's strength and has strong resistance to wind and snow. The support system can adjust the front and rear, left and right, and up and down directions, effectively improving the efficiency of engineering installation and greatly reducing installation costs.
Details

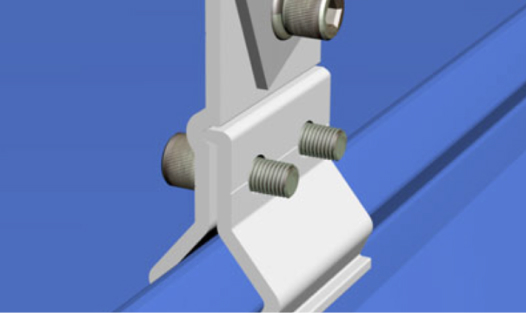

Angular fixture
Mainly suitable for colored steel tile roofs, the main structural material is aluminum alloy. Through professional design, the angle clamp is perfectly connected with the colored steel tile, achieving different installation requirements.
Details
Facade angle galloping type III fixture
The main structural material is aluminum alloy, and through professional design, the support seat is perfectly connected with the colored steel tile, achieving your installation requirements, tailored design plans, and excellent structural strength calculations.
Details
Color steel tile roof support system
Fix the L-angle base on the colored steel tile with self tapping screws (equipped with waterproof pad) Fix the guide rail on the L-corner with M8 * 25 hexagonal bolts, flat washers, spring washers, and slider nuts When the array is relatively long, the guide rails are fixed with guide rail links between them Fix the components on the guide rail using edge pressure blocks and medium pressure blocks
Details
