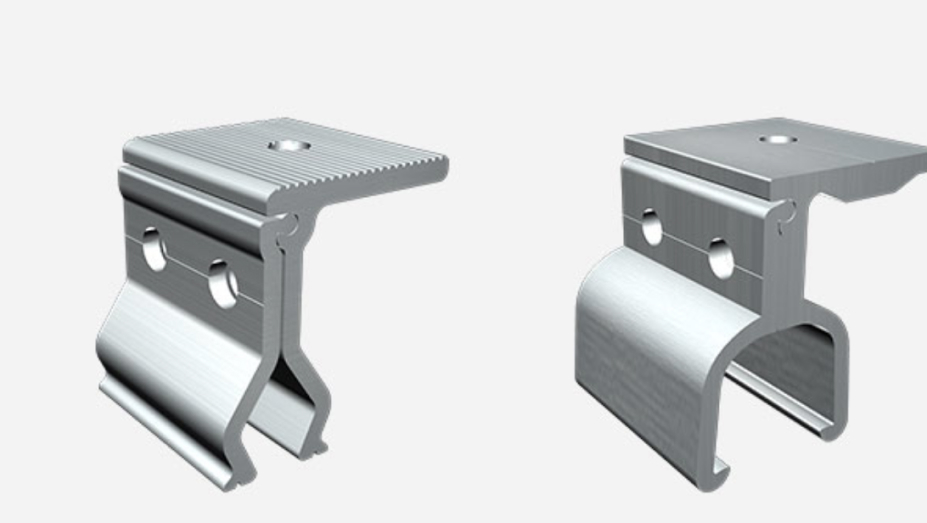

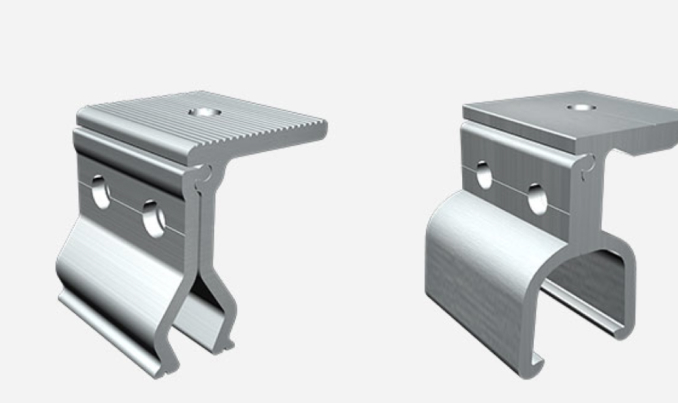

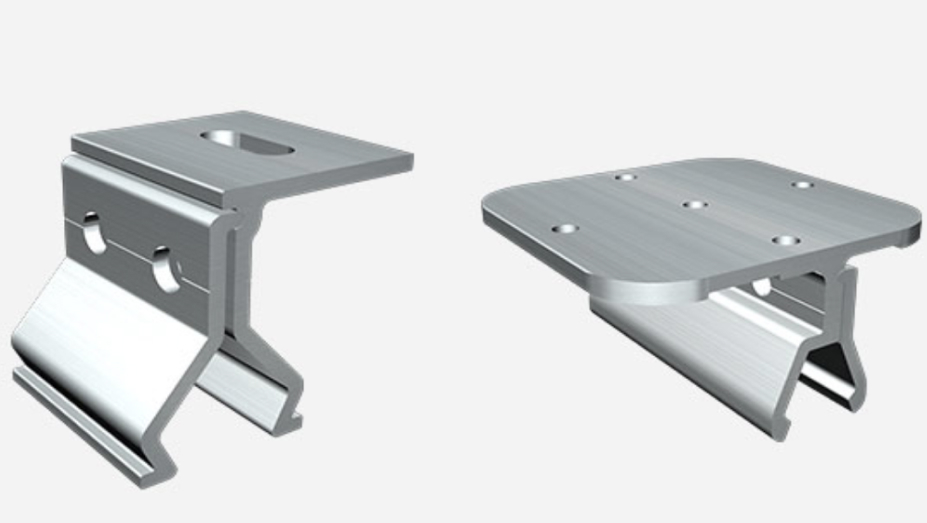

Angular fixture
Overview

Mainly suitable for colored steel tile roofs, the main structural material is aluminum alloy. Through professional design, the angle clamp is perfectly connected with the colored steel tile, achieving different installation requirements.

Product Features
Rectangle
Rectangle
Rectangle

Advantage

Parameter

Adapt to the scene

Advantage
Suitable for different colored steel tile roofs
Save construction costs and time
Fully compatible with different photovoltaic modules
Better structural design
Parameter
System Name
Corner Clamp
Installation location
sloping roof
Installation foundation
Color steel tiles
Installation angle
0-15 °
Wind load
60m/s
Snow load
1.6KN/m2
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Standards
AS/NZS 1170, DIN 1055, JIS C8955:2017, International Building Code IBC 2009, California Building Code CBC 2010;
Support material
Q235B (hot-dip galvanized), AI6005-T5 (surface anodized)
Fastener Material
SUS304&Zinc Nickel Alloy&Hot Dip Galvanized
Material of spare parts
AI6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
System warranty
10 years

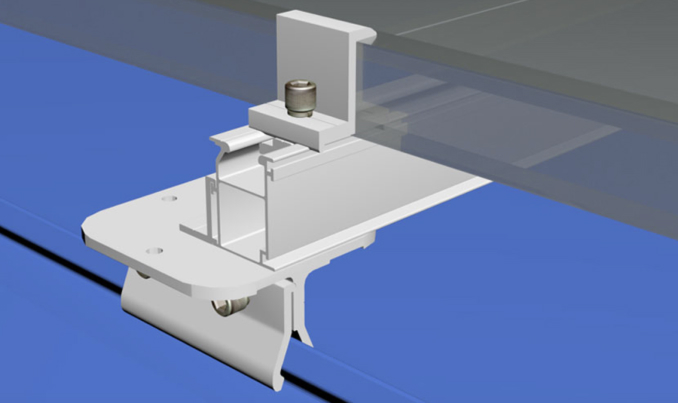

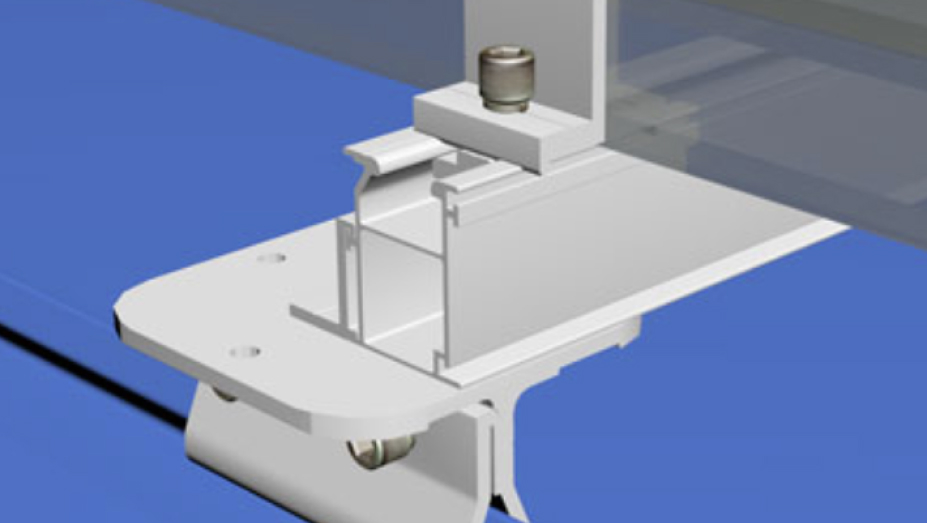

Adapt to the scene
.
