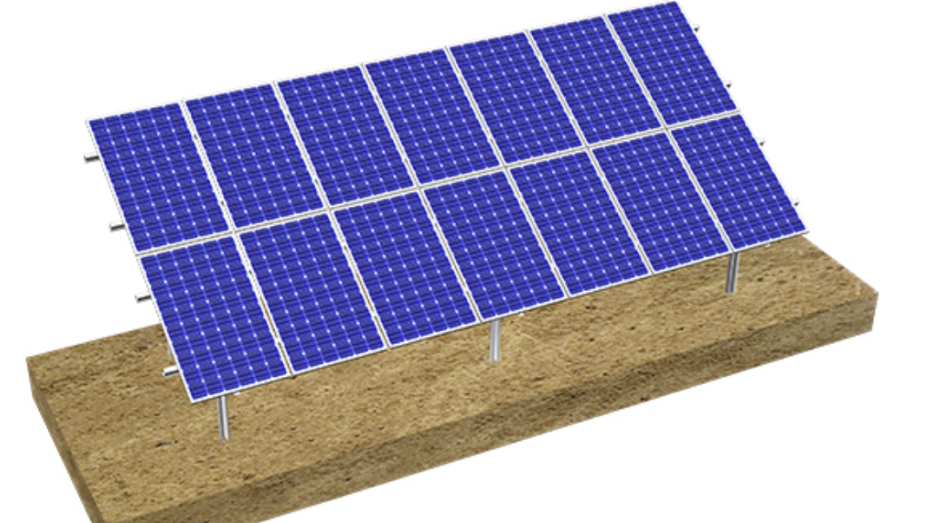

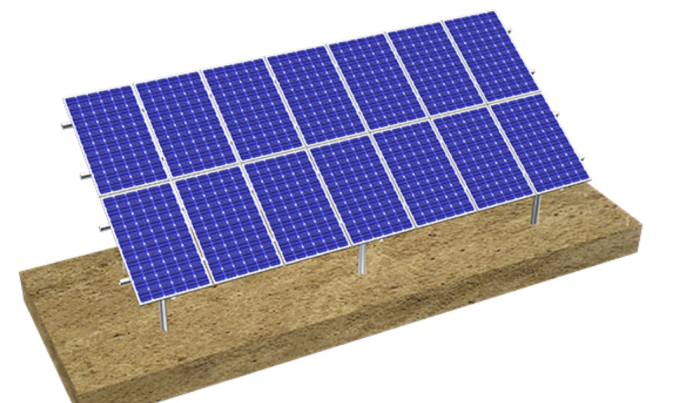

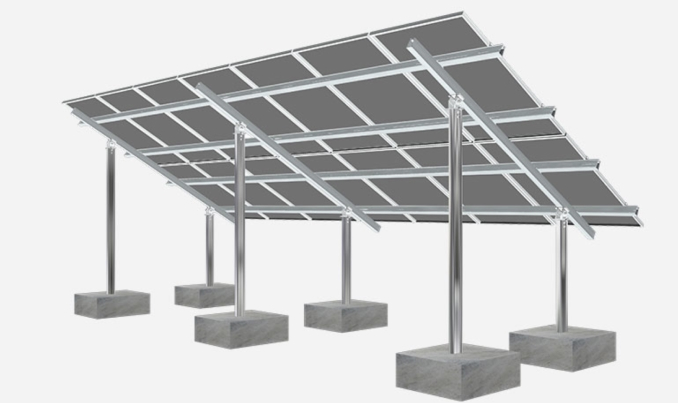

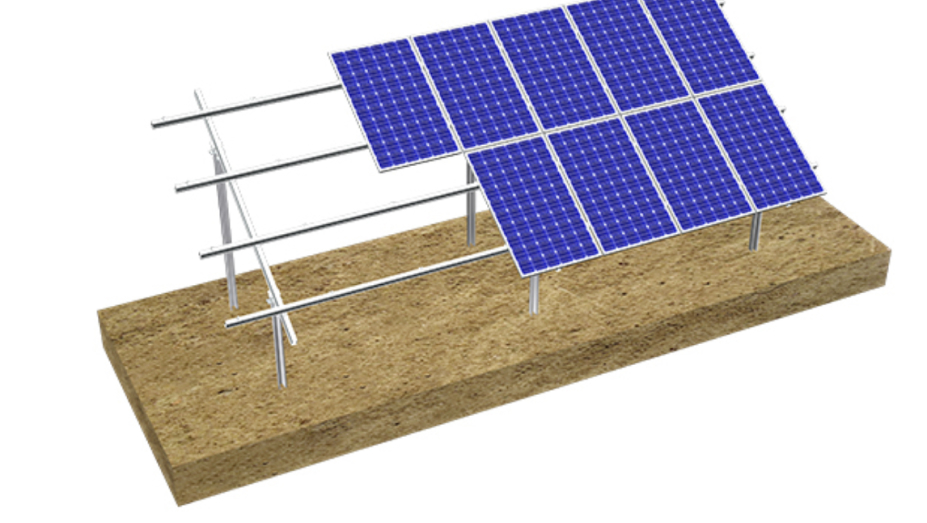

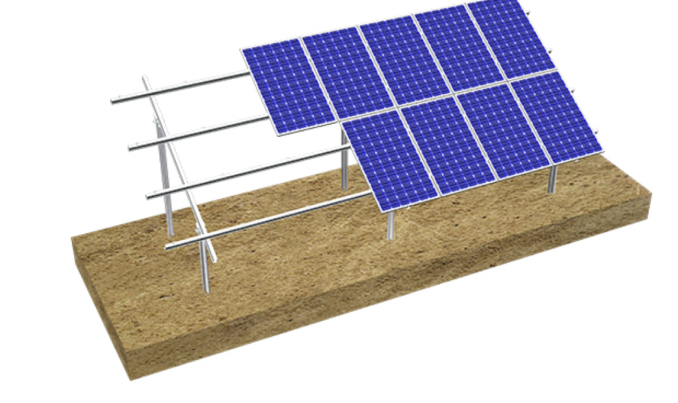

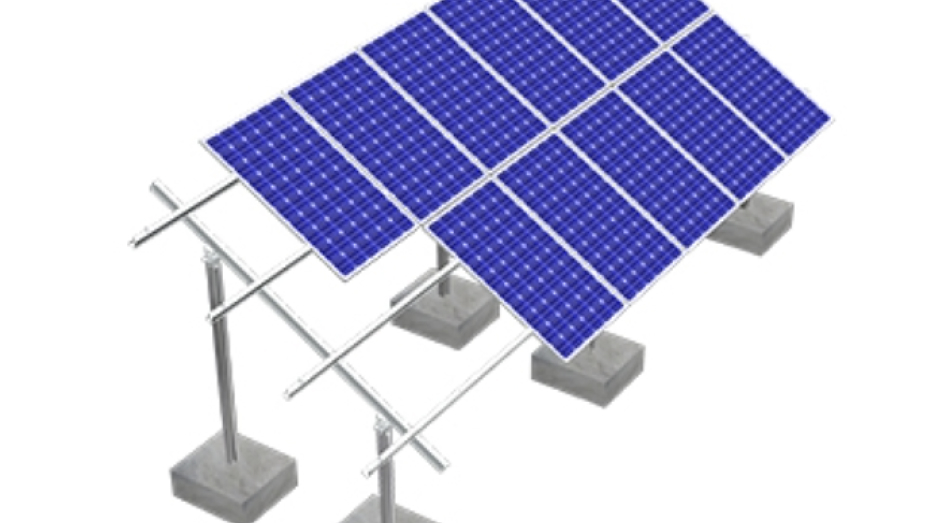

Ground photovoltaic support system GT8
Overview

Mainly suitable for the installation of large commercial and public utility power plants, this product has a sturdy structure and lower cost, and its main accessories are made of aluminum alloy.

Product Features
Rectangle
Rectangle
Rectangle

Advantage

Parameter

Adapt to the scene

Advantage
Highly pre installed to save installation time
Adopting a dual column design scheme
Structural Multi Style
The fixing of the longitudinal beam does not require drilling
Parameter
Installation location
Ground level
Installation foundation
Several shaped columns
Installation angle
0-60 °
Wind load
60m/s
Snow load
1.6KN/m2
Ground clearance
500-2000mm
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C 8955:2017, International Building Code IBC 2009, California Building Code CBC 2010
Support Material
Q235B (Hot Dip Galvanized)&AI6005-T5 (Surface Anodized)
Fastener material
Zinc nickel alloy&stainless steel SUS304
Material of spare parts
AI6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
System warranty
10 years
Adapt to the scene
.
Group
