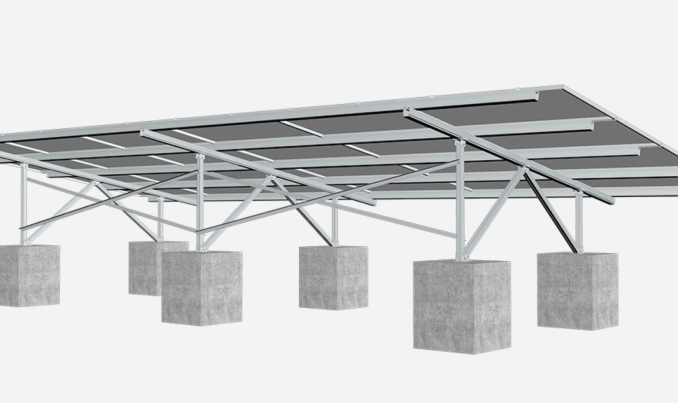

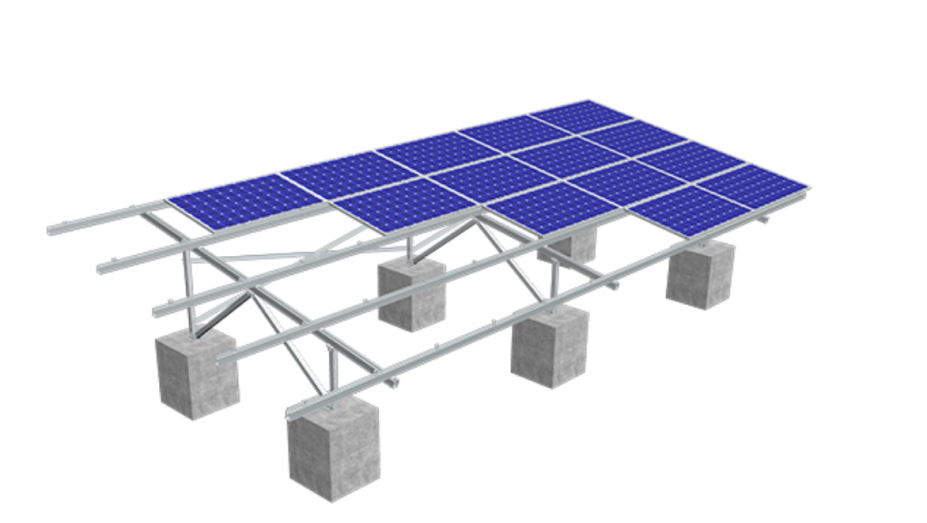

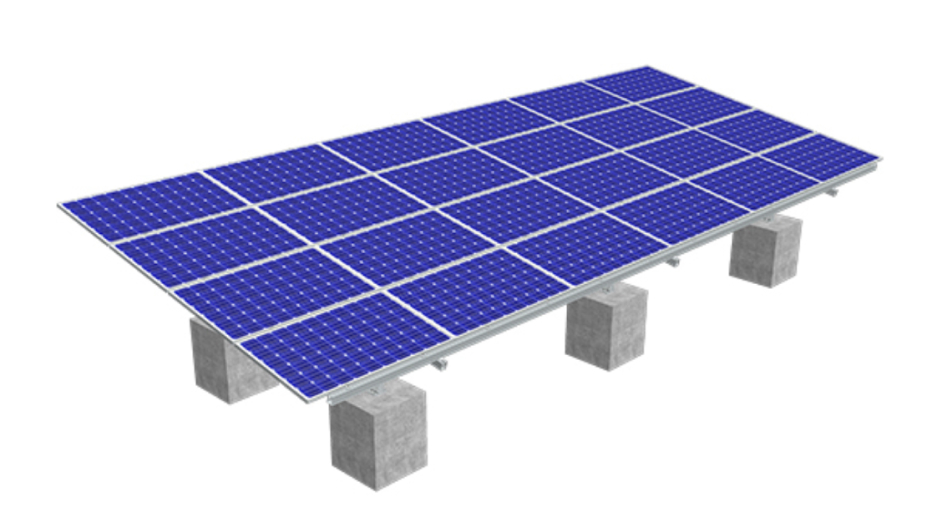

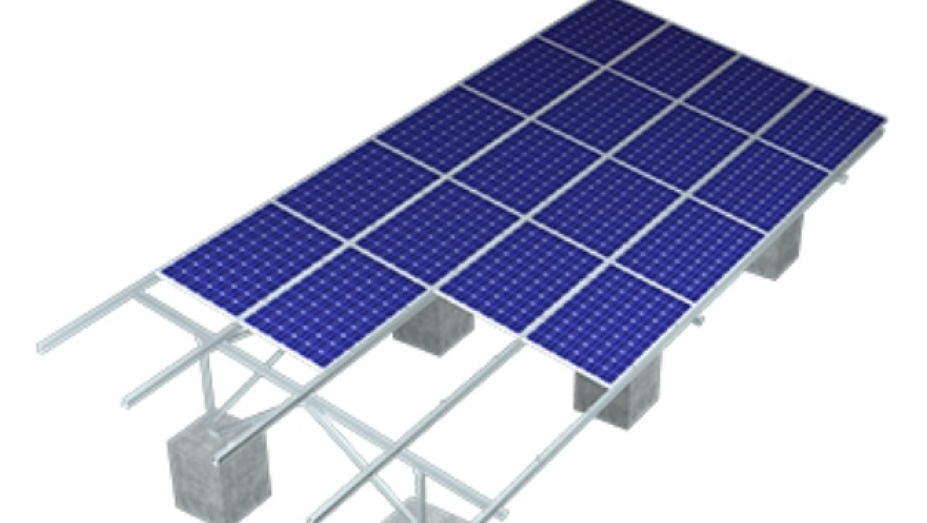

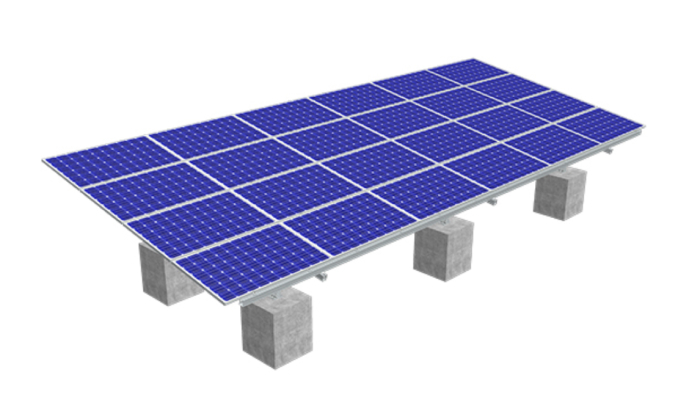

Ground photovoltaic support system GT4
Overview

This product is suitable for the installation of medium to large photovoltaic power plants, with high pre installation characteristics, and is suitable for installation areas with higher requirements for wind and snow resistance.

Product Features
Rectangle
Rectangle
Rectangle

Advantage

Parameter

Adapt to the scene

Advantage
Rapid station construction with low construction costs
Flexible on-site adjustment
Convenient component installation method
The fixing of the longitudinal beam does not require drilling
Parameter
Installation location
Ground level
Installation foundation
Cement foundation, spiral ground pile
Installation angle
0-60 °
Wind load
60m/s
Snow load
1.6KN/m2
Ground clearance
500-2000mm
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C 8955:2017, International Building Code IBC 2009, California Building Code CBC 2010
Support material
AI6005-T5 (surface anodized)
Fastener material
Zinc nickel alloy&stainless steel SUS304
Material of spare parts
AI6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
System warranty
10 years
Adapt to the scene
.
