Ground single column photovoltaic support system
Overview
The ground single column photovoltaic bracket is a solution developed specifically for large commercial and public utility power plants, suitable for various small hills and uneven area projects. The product is designed flexibly and can support 6, 8, and 10 boards. All accessories are made of hot-dip galvanized steel and aluminum alloy, with a longer service life. The optimized design in structure effectively improves installation efficiency and greatly reduces engineering installation costs.
Product Features
Advantage
Parameter
Adapt to the scene
Advantage
Strong adaptability to the environment, high power generation efficiency
- Suitable for different ground environments.
Professional structural design
- To ensure the overall stability and strength of the system, prefabrication is completed in the factory, and installation can be completed on-site by simply fixing and splicing fasteners.

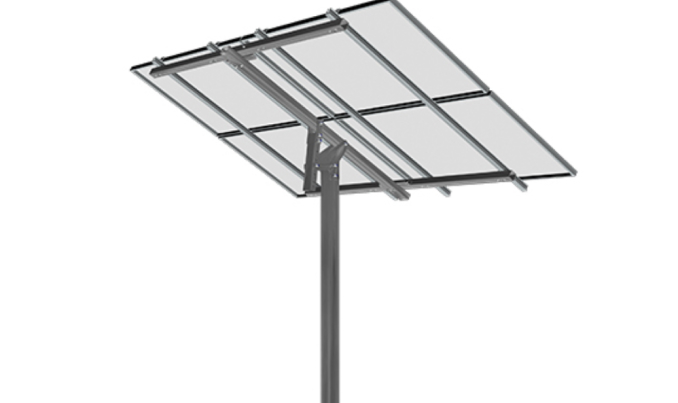

Designed with a single column structure

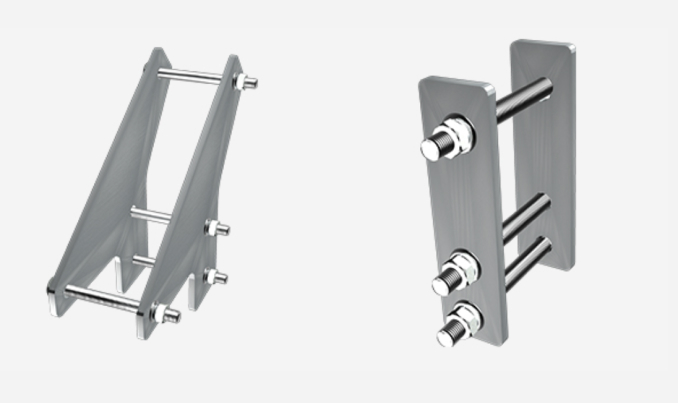

- Multiple angles can be adjusted according to the prefabricated adjustment holes.

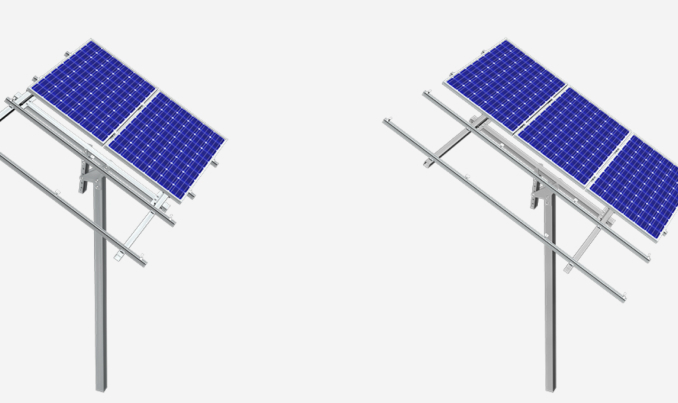

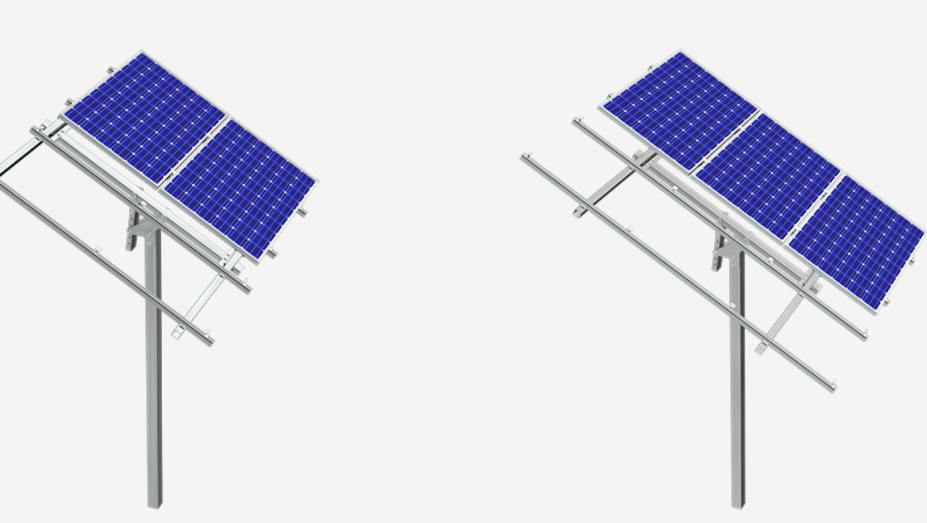

Fully compatible with different photovoltaic modules
- Can freely and flexibly support various types of photovoltaic modules.
Parameter
Installation location
Ground level
Installation foundation
Piling, cement foundation, spiral ground pile
Installation angle
10-60 °
Ground clearance
500-2000mm
Applicable component types
| Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C8955:2017, International Building Code IBC 2009, California Building Code CBC 2010;
Support material
Q235B (hot-dip galvanized), AL6005-T5 (surface anodized)
Fastener Material
SUS304&Zinc Nickel Alloy&Hot Dip Galvanized
Material of spare parts
AL6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
