Advantage
Parameter
Adapt to the scene
Advantage

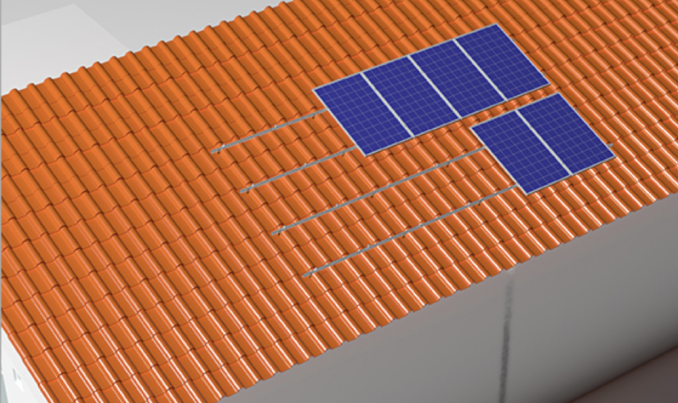

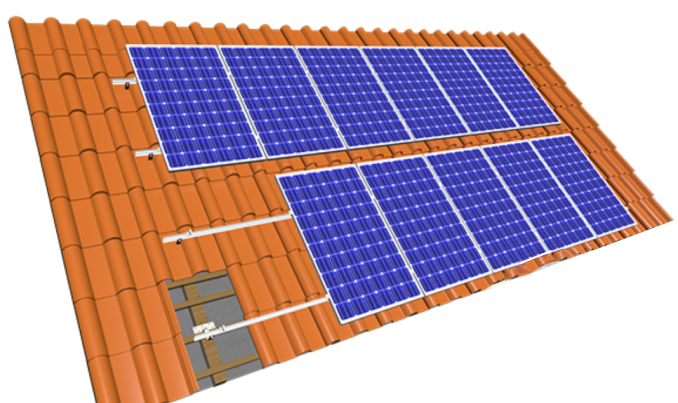

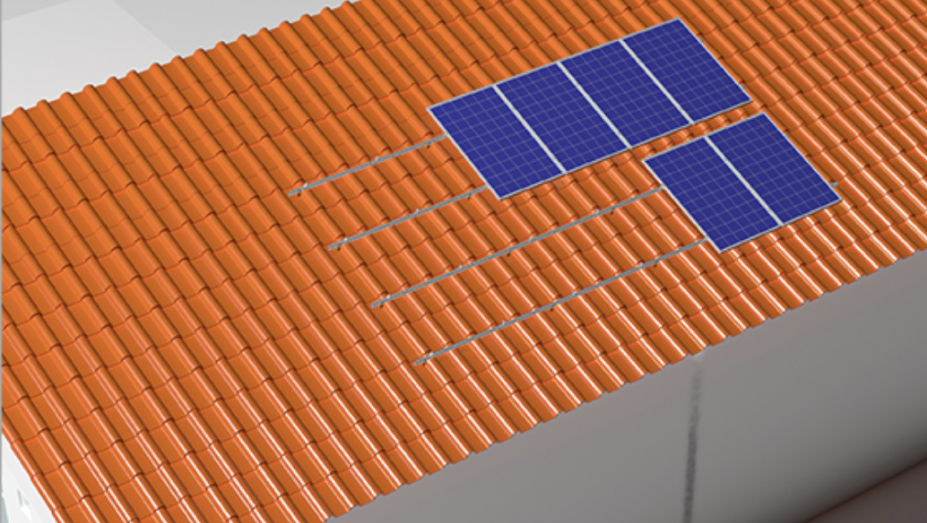

Suitable for different porcelain tile roofs
- Design according to the specific situation of each customer and flexibly select different bracket components.
Save construction costs and time
- Professional structural design and system solutions can effectively reduce on-site construction difficulty and time, and reduce project costs
Fully compatible with different photovoltaic modules
- The independently developed and designed pressure block is compatible with various standard types of photovoltaic modules on the market.
Parameter
Installation location
sloping roof
Installation foundation
Porcelain tiles, flat tiles, slate tiles, asphalt tiles, etc
Installation angle
5-45 °
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C 8955:2017, International Building Code IBC 2009, California Building Code CBC 2010
Support material
AI6005-T5 (surface anodized)

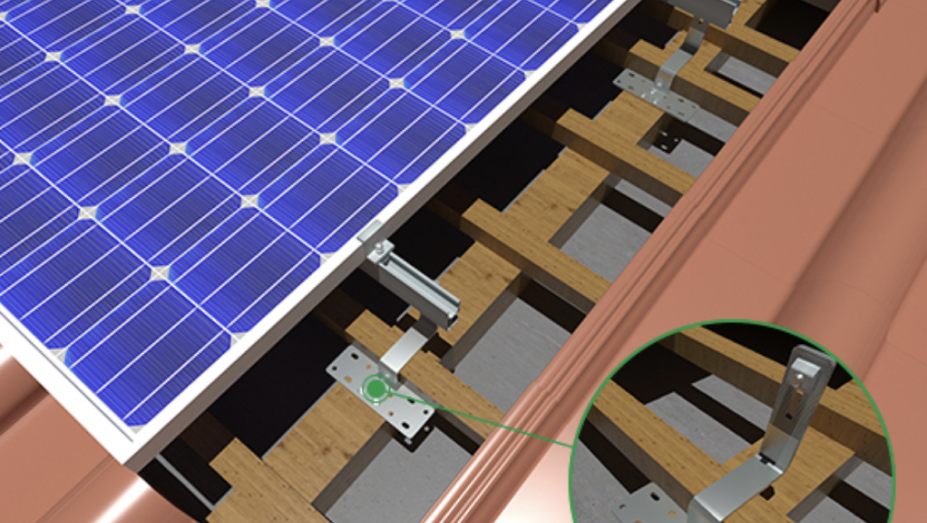

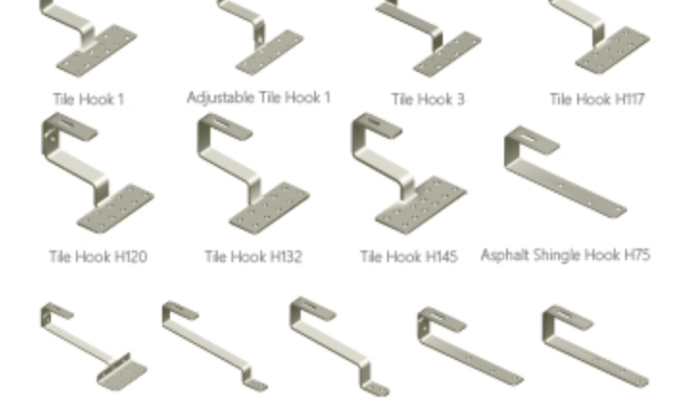

Hook material
Stainless steel SUS304&zinc nickel alloy
Fastener Material
Stainless Steel SUS304&Zinc Nickel Alloy&Hot Dip Galvanized
Material of spare parts
AL6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
