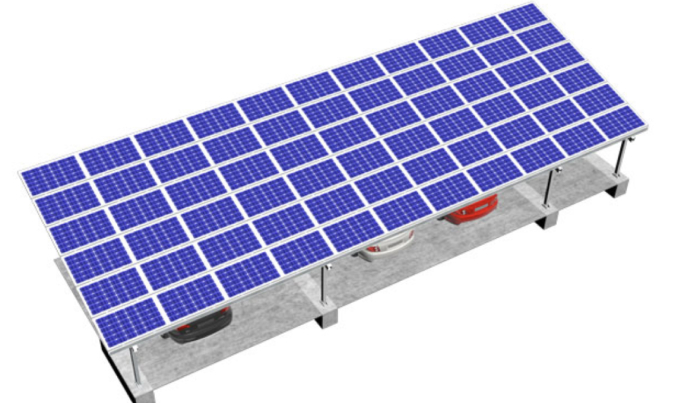

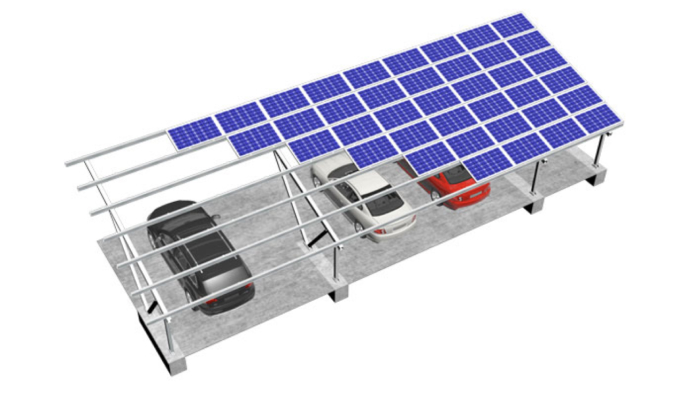

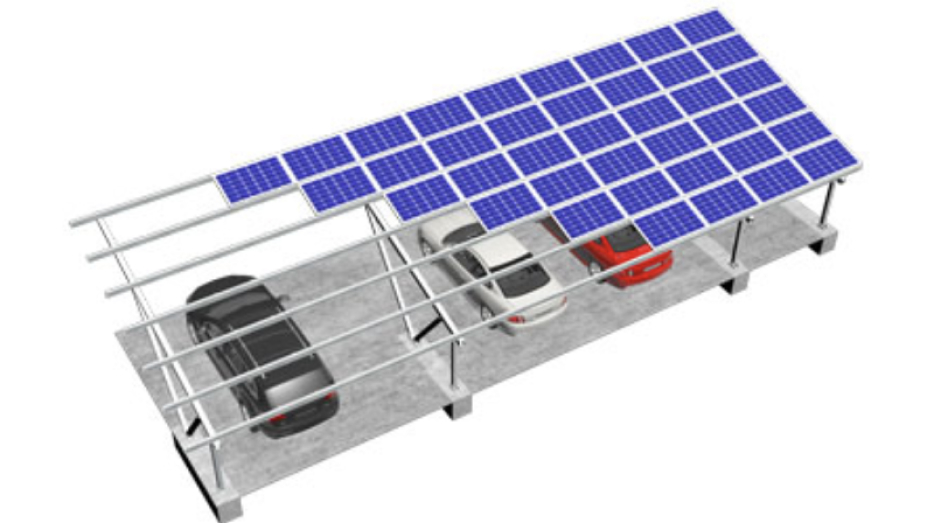

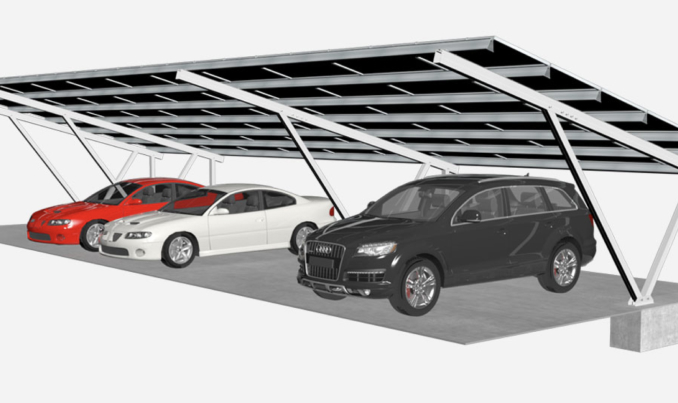

Car shed photovoltaic support system
Overview

The garage photovoltaic support system is a pre installed ground photovoltaic support system suitable for large-scale commercial and multi-purpose installations.

Product Features
Rectangle
Rectangle
Rectangle

Advantage

Parameter

Adapt to the scene

Advantage
Fully compatible with different photovoltaic modules
Save construction costs and time
Tailored solutions
High waterproof level
Parameter
Installation location
Open area
Installation foundation
Cement foundation
Installation angle
5-15 °
Wind load
45m/s
Snow load
1.2KN/m2
Ground clearance
2000mm+
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C 8955:2017, International Building Code IBC 2009, California Building Code CBC 2010
Support material
AI6005-T5 (surface anodized)
Fastener material
Zinc nickel alloy&stainless steel SUS304
Material of spare parts
AI6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
System warranty
10 years
Adapt to the scene
.
