Trapezoidal colored steel tile support seat (without guide rail)
Overview

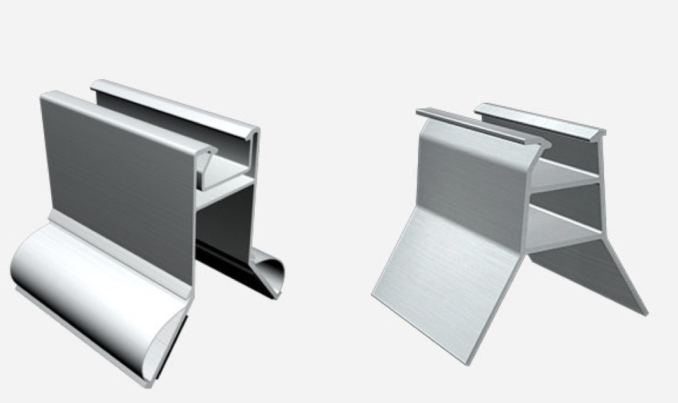

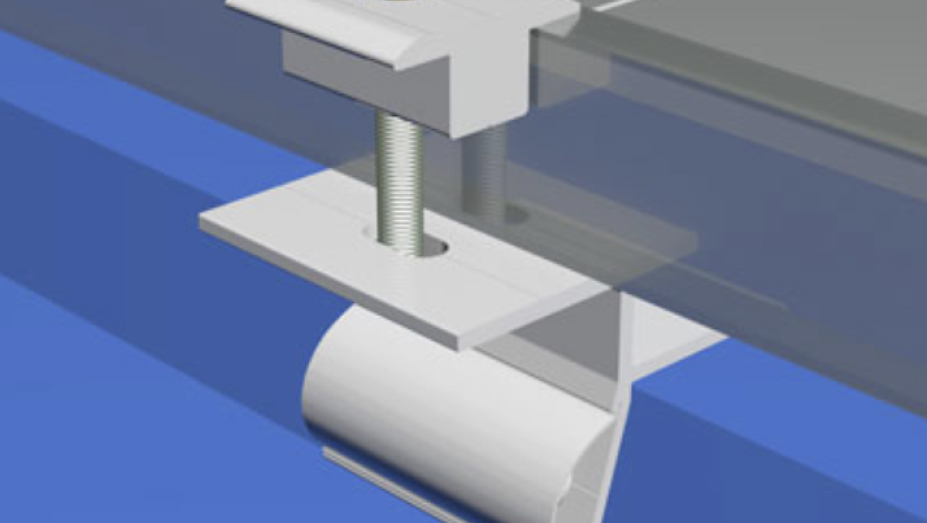

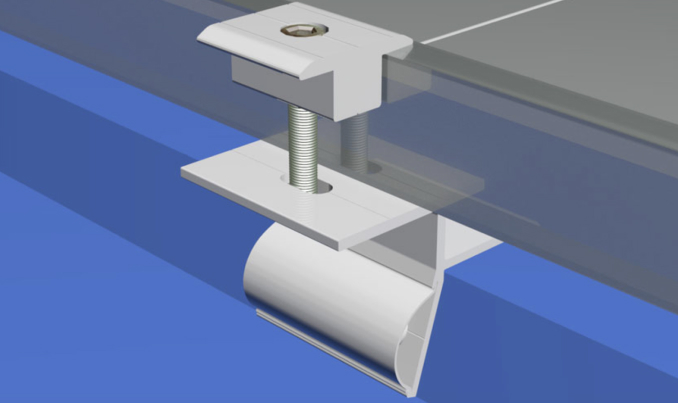

Suitable for T-shaped colored steel tiles on roofs, the main structural material is aluminum alloy. Through professional design, the support seat is perfectly connected to the T-shaped colored steel tiles

Product Features
Rectangle
Rectangle

Advantage

Parameter

Adapt to the scene

Advantage
Low installation of spare parts, fast installation, and high cost-effectiveness
Flexible installation with cement foundation or ballast board
Strict quality control ensures the service life of the bracket
High density structural design ensures minimal container space
Parameter
System name
Trapezoidal color steel tile support seat (without guide rail)
Installation location
sloping roof
Installation foundation
T-shaped colored steel tile
Installation angle
0-15 °
Wind load
60m/s
Snow load
1.6KN/m2
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Standards
AS/NZS 1170, DIN 1055, JIS C8955:2017, International Building Code IBC 2009, California Building Code CBC 2010;
Support seat material
Q235B (hot-dip galvanized), AI6005-T5 (surface anodized)
Fastener Material
SUS304&Zinc Nickel Alloy&Hot Dip Galvanized
Material of spare parts
AI6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
System warranty
10 years
