Trapezoidal colored steel tile support seat (with guide rail)
Overview

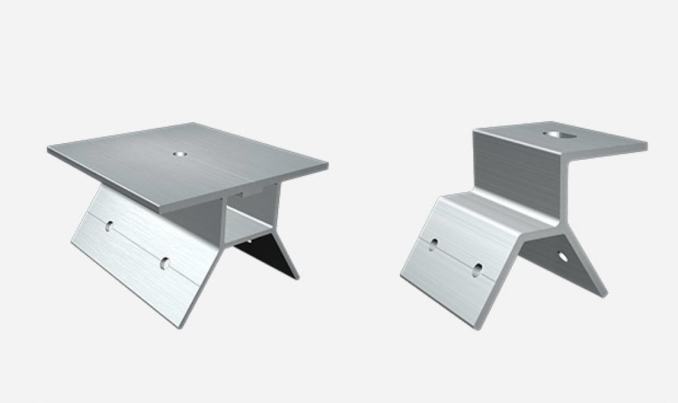

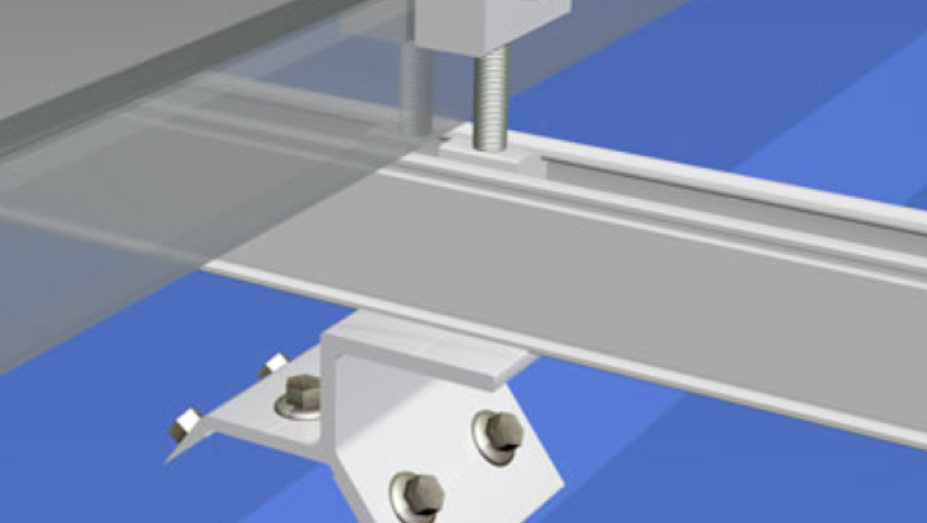

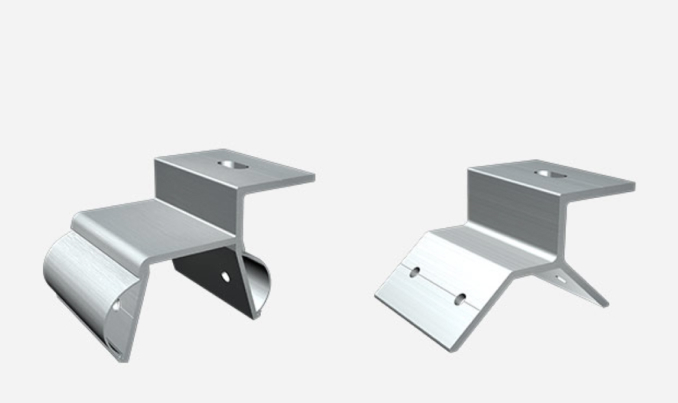

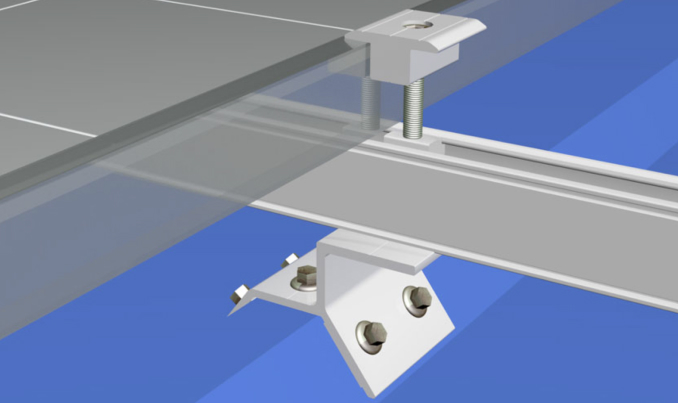

Mainly suitable for T-shaped colored steel tiles on roofs, the main structural material is aluminum alloy. Through professional design, the support seat is perfectly connected to the trapezoidal colored steel tiles

Product Features
Rectangle
Rectangle
Rectangle

Advantage

Parameter

Adapt to the scene

Advantage
Low installation of spare parts, fast installation, and high cost-effectiveness
Flexible installation with cement foundation or ballast board
Strict quality control ensures the service life of the bracket
High density structural design ensures minimal container space
Parameter
Product Name
Roof Photovoltaic Support System I (Matrix)
Installation location
Flat roof house, open flat land
Installation foundation
Cement foundation ballast
Installation angle
10 °
Wind load
60m/s
Snow load
1.6KN/m2
Applicable component types
boxed
Component layout method
Landscape
Standard
AS/NZS 1170, DIN 1055, JIS C 8955:2017, International Building Code IBC 2009 California Building Code CBC 2010
Support material
AL6005-T5 (surface anodized)
Fastener material
Zinc nickel alloy&stainless steel SUS304
Material of spare parts
AL6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
System warranty
10 years
