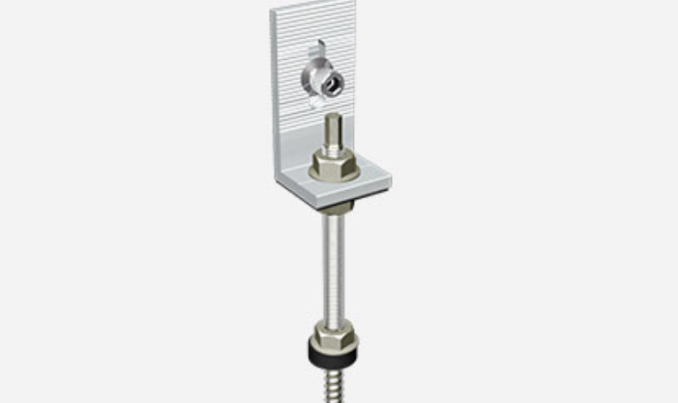

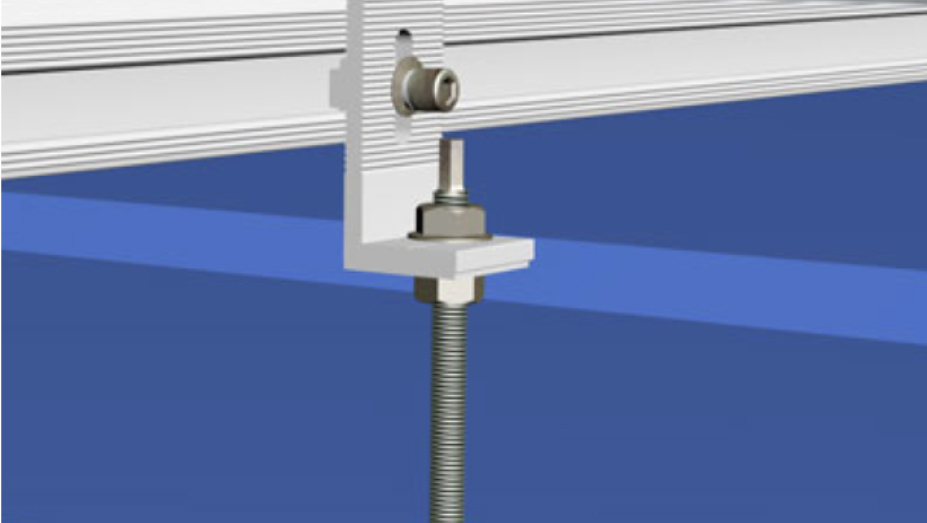

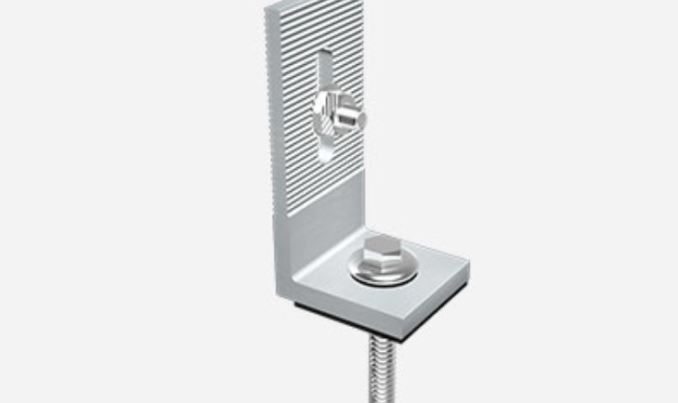

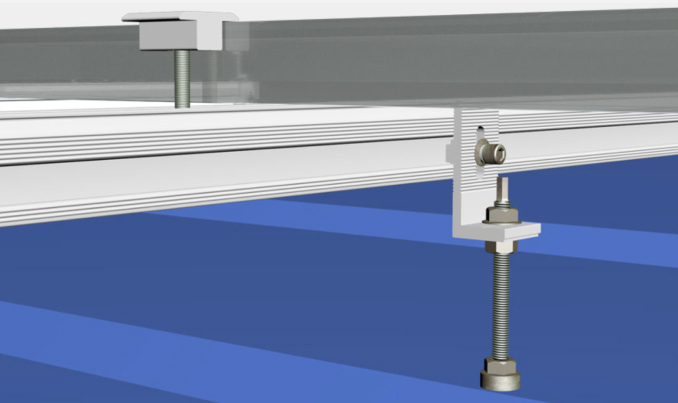

L right angle support seat&screw type support seat
Overview
Mainly suitable for trapezoidal colored steel roof tiles, the main structural material is aluminum alloy. Through professional design, the support seat is perfectly connected with the T-shaped colored steel tile, achieving your installation requirements. With a tailored design scheme and excellent structural strength calculation, it helps you minimize the installation time and cost of the project to the greatest extent. The unique design of patented accessories brings you more fast installation experience.
Product Features
Advantage
Parameter
Adapt to the scene
Parameter
System Name
L Right Angle Support Seat&Screw Type Support Seat
Installation location
sloping roof
Installation foundation
trapezoidal colored steel tiles
Installation angle
0-15 °
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Standards
AS/NZS 1170, DIN 1055, JIS C8955:2017, International Building Code IBC 2009, California Building Code CBC 2010;
Support material
AI6005-T5 (surface anodized)
Fastener Material
SUS304&Zinc Nickel Alloy&Hot Dip Galvanized
Material of spare parts
AI6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
