Waterproof support seat
Overview

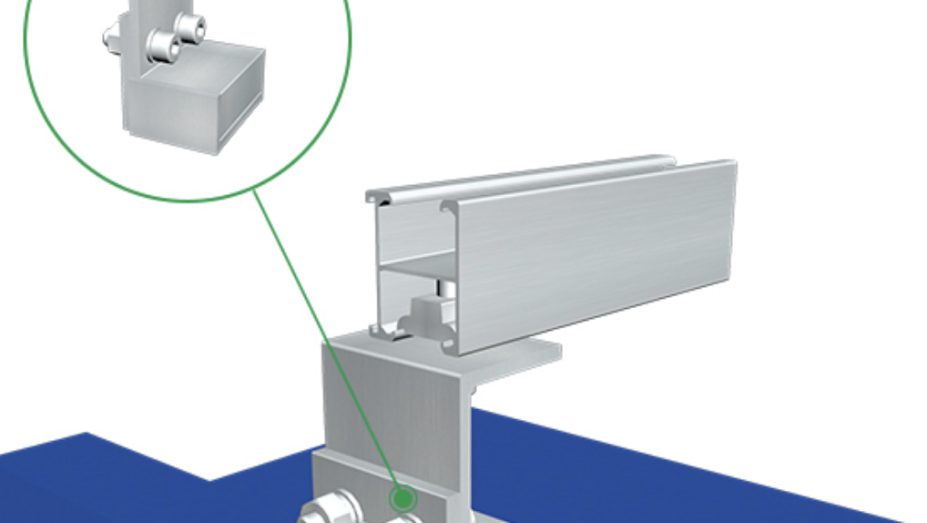

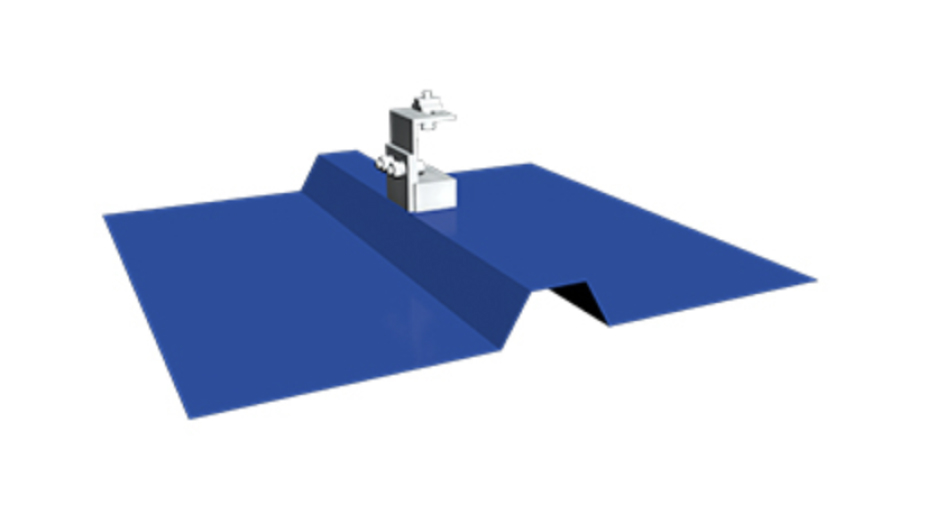

The main structure of the waterproof support seat is made of aluminum alloy. Through professional design, the support seat is perfectly connected to the T-shaped colored steel tile. The unique waterproof structure design allows you to avoid the trouble of roof seepage caused by installation, achieving your requirements for installation and protection of the roof. The design scheme tailored to local conditions and excellent structural strength calculation help you minimize the installation time and cost of the project to the greatest extent. The unique design of patented accessories brings you more fast installation experience.

Product Features
Rectangle
Rectangle
Rectangle

Advantage

Parameter

Adapt to the scene

Advantage
Suitable for different colored steel tile roofs
  • Design according to the specific situation of each customer and flexibly select different bracket components.
Save construction costs and time
  • We will provide you with installation manuals and system solutions, making on-site construction simple and reducing project costs with less construction time.

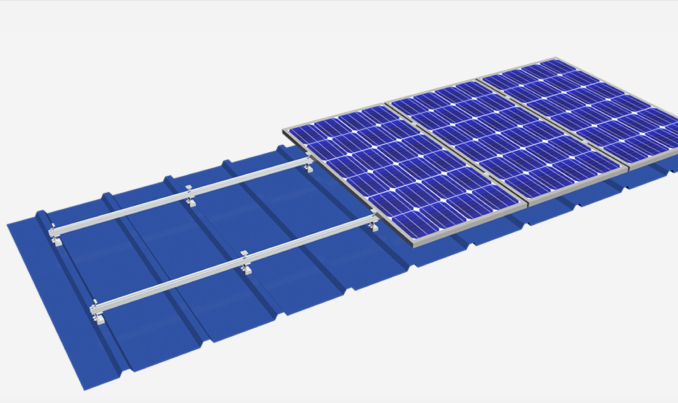

Fully compatible with different photovoltaic modules
  • Can freely and flexibly support various types of photovoltaic modules.
Parameter
Installation location
sloping roof
Installation foundation
T-shaped colored steel tile
Installation angle
0 °
Wind load
60m/s
Snow load
1.6KN/m2
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C8955:2017, International Building Code: IBC 2009, California Building Code: CBC 2010;
Support seat material
AL6005-T5 (surface anodized)
Fastener Material
SUS304&Zinc Nickel Alloy&Hot Dip Galvanized
Material of spare parts
AL6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
System warranty
10 years
Adapt to the scene
.
