standing seam
Overview

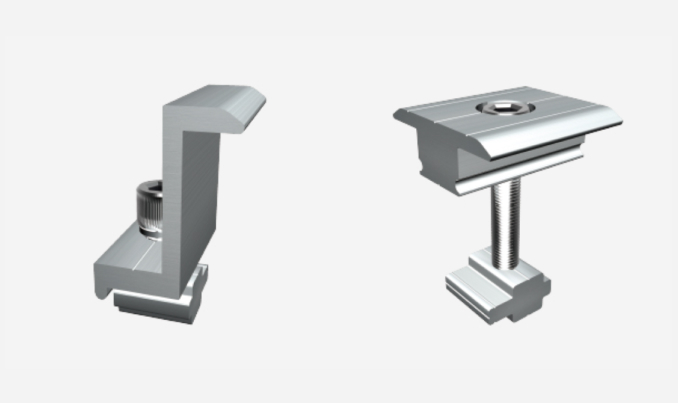

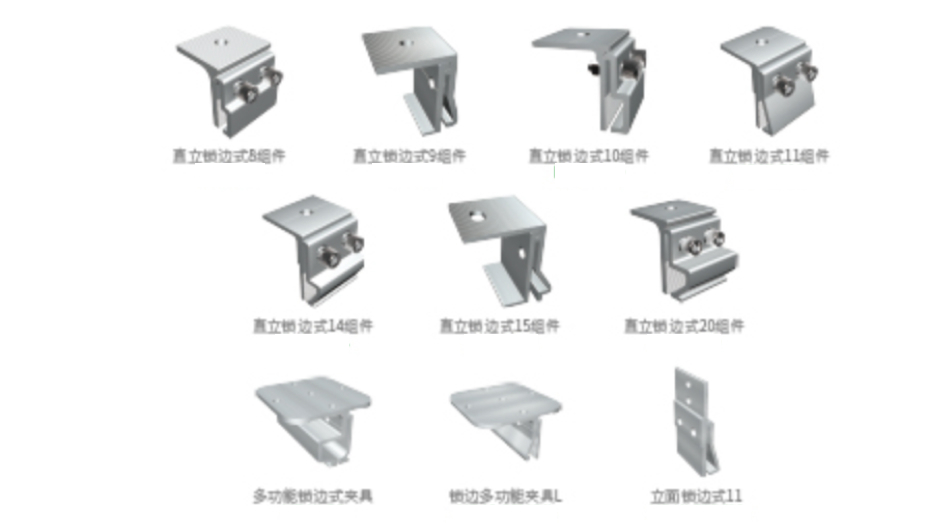

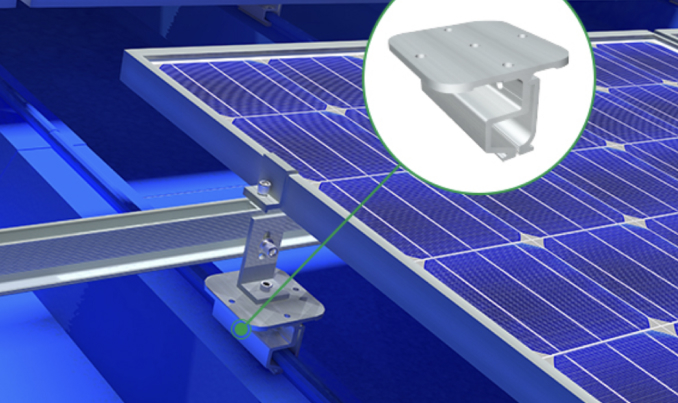

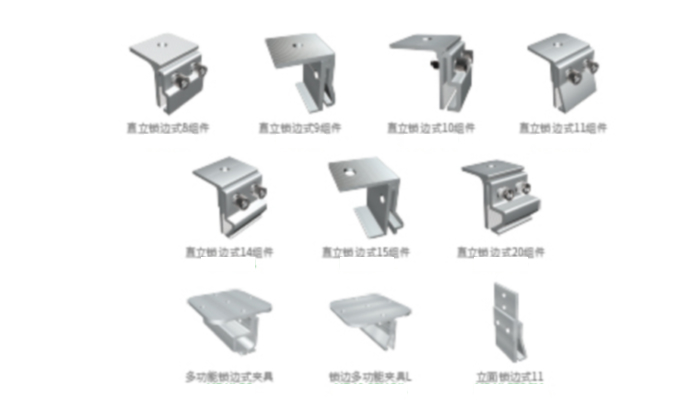

The vertical locking edge fixture is mainly suitable for roof colored steel tiles. The main structural material is aluminum alloy, and the unique structural design allows the vertical locking edge fixture to perfectly connect with the colored steel tiles, meeting your requirements for different installation conditions; A design scheme tailored to local conditions and excellent structural strength calculation, saving installation time and reducing installation costs; The unique design of patented accessories brings you a more efficient installation experience.

Product Features
Rectangle
Rectangle
Rectangle
Group

Advantage

Parameter

Adapt to the scene

Advantage
Suitable for different colored steel tile roofs
  • According to different vertical lock edge color steel tile types, professional customized design is made to achieve perfect coordination between fixtures and color steel tiles.
Save construction costs and time
  • Professional structural design and system solutions can effectively reduce the difficulty and time of on-site construction, and reduce project costs.
Fully compatible with different photovoltaic modules
  • Can freely and flexibly support various types of photovoltaic modules.
Better structural design
  • Professional design can meet the requirements of flat and angled components, while also meeting the requirements of horizontal or vertical arrangement of components.
Parameter
System name
Vertical locking fixture
Installation location
sloping roof
Installation foundation
Color steel tiles
Installation angle
0-15 °
Wind load
60m/s
Snow load
1.6KN/m2
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C8955:2017, International Building Code: IBC 2009,
California Building Code:CBC 2010;
Support material
AI6005-T5 (surface anodized)
Fastener Material
SUS304&Zinc Nickel Alloy&Hot Dip Galvanized
Material of spare parts
AL6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
System warranty
10 years

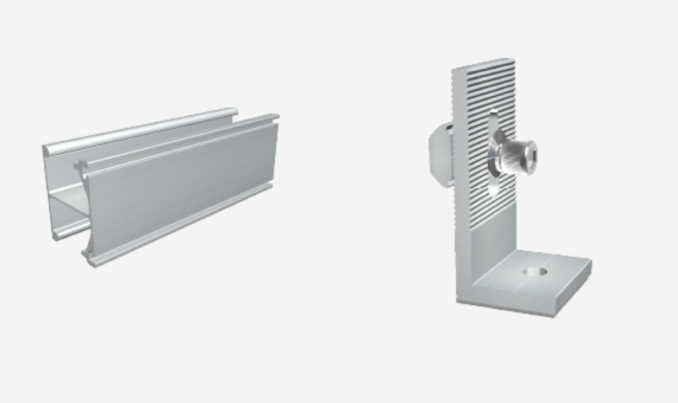

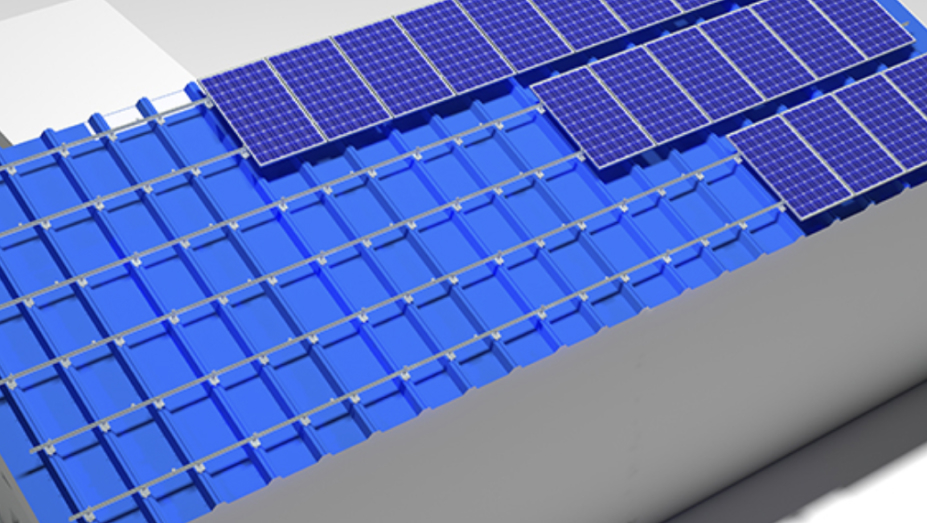

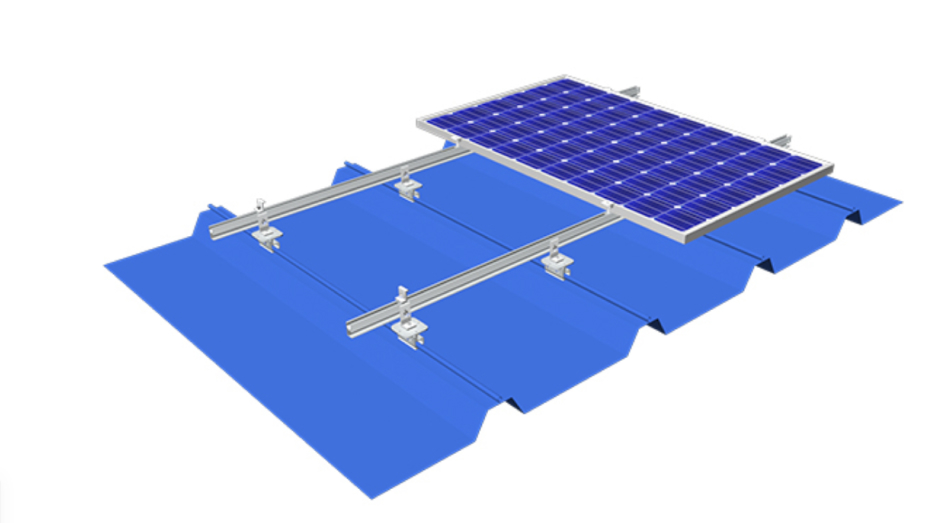

Adapt to the scene
.
