Color steel tile photovoltaic support system PGT4
Overview

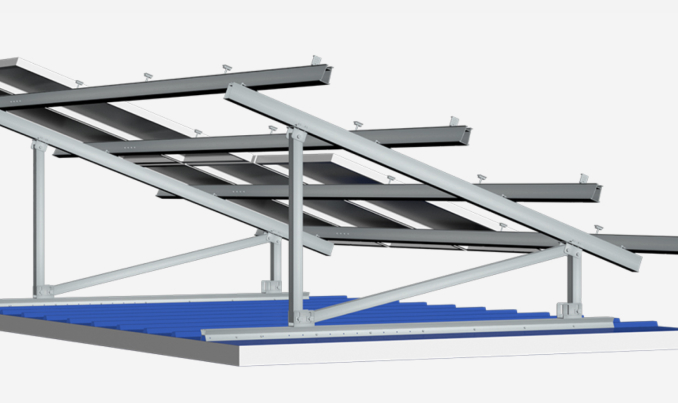

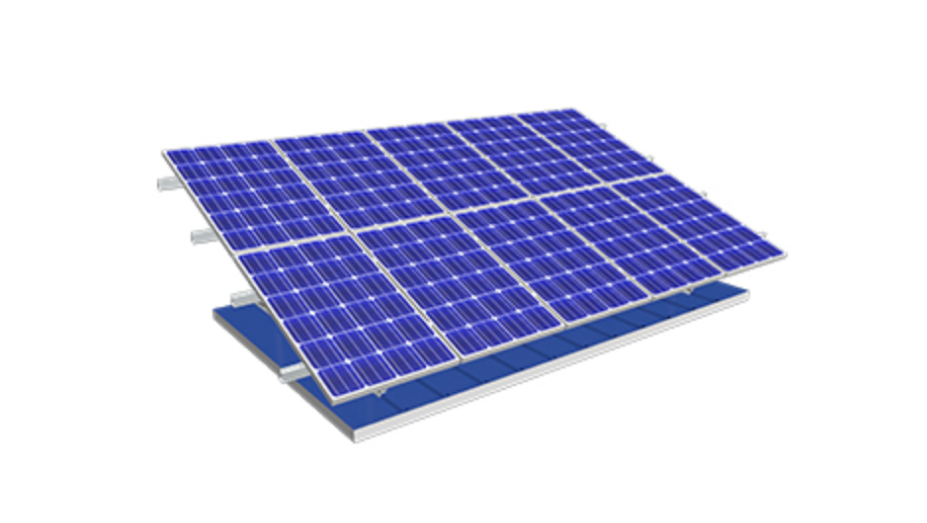

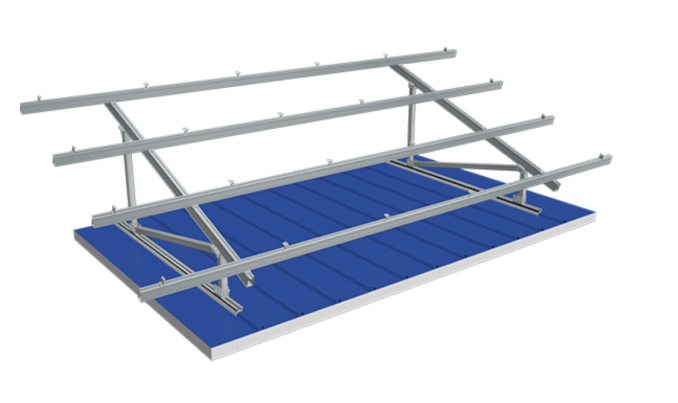

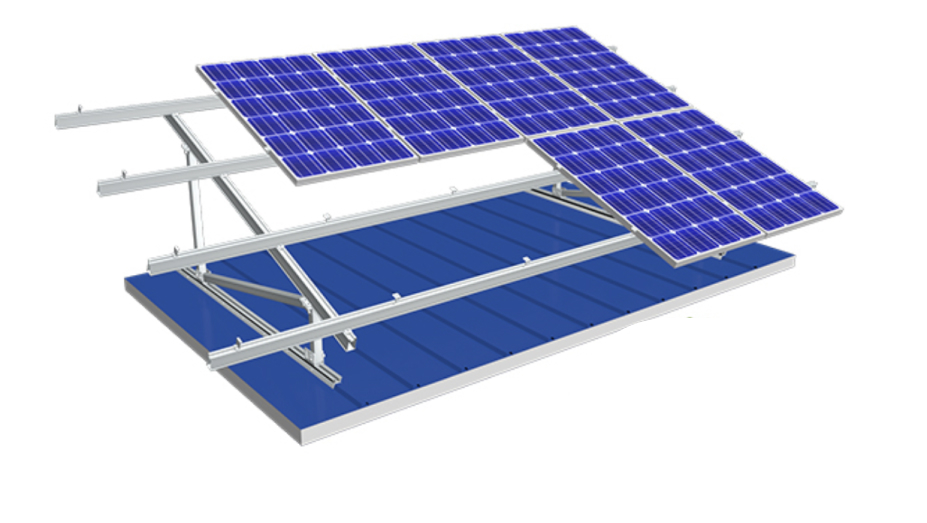

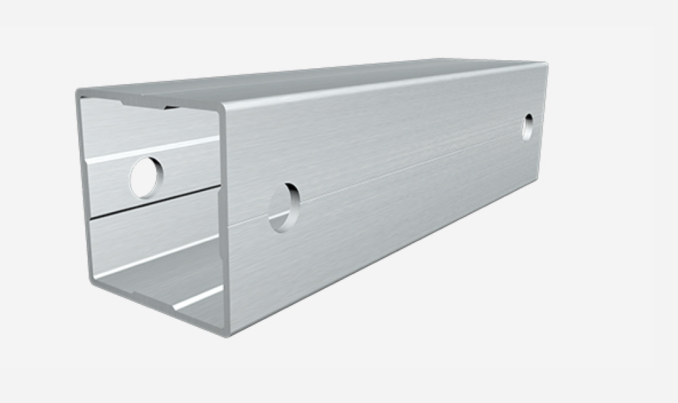

Color steel tile photovoltaic support system PGT4 This product has high pre installation characteristics and is suitable for the installation of various color steel tile roofs. Comprehensively optimize the strength of the system support square tube, improve the overall stability of the system, and further optimize the longitudinal beam structure. Professional structural design ensures the system's strength and has strong resistance to wind and snow. The support system can adjust the front and rear, left and right, and up and down directions, effectively improving the efficiency of engineering installation and greatly reducing installation costs.

Product Features
Rectangle
Rectangle
Rectangle
Rectangle

Advantage

Parameter

Adapt to the scene

Advantage
The card block and slot adopt a symmetrical design
  • No directional requirements during installation, improving installation efficiency.

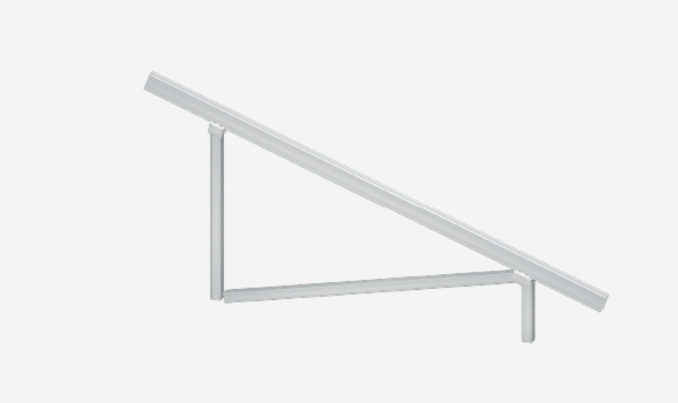

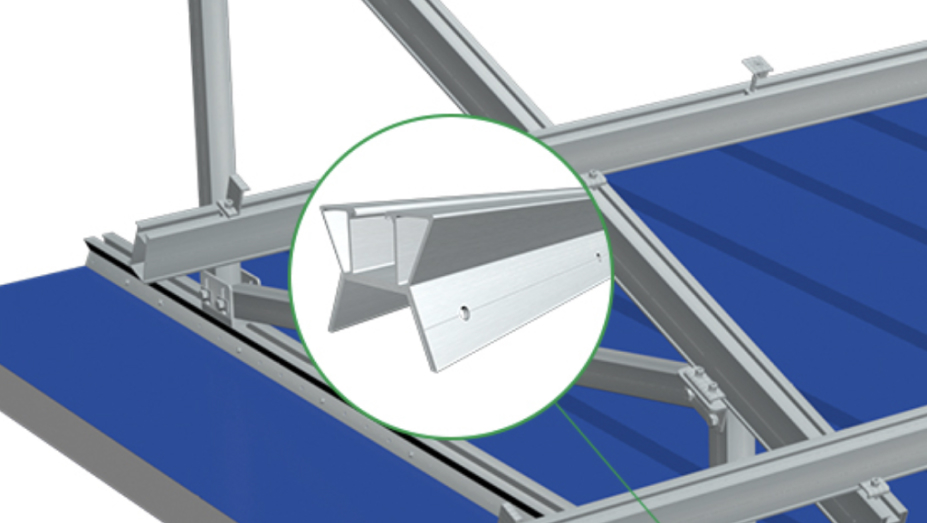

Unique support seat design
  • A support seat specially developed for colored steel tile roofs makes the entire system more stable and convenient to install.
Highly pre installed to save installation time
  • Less installation of spare parts, highly pre installed in the factory, without the need for any on-site cutting or drilling, reducing the difficulty and time of on-site construction, greatly reducing project costs.
Flexible on-site adjustment
  • Industry leading professional design, designed according to terrain adjustment, can achieve vertical, east-west, southwest, north-south adjustment, simplify installation, and maximize photovoltaic power generation.
Parameter
Installation location
Color steel tile roof
Installation foundation
Cement foundation, spiral ground pile
Installation angle
0-30 °
Wind load
60m/s
Snow load
1.6KN/m2
Applicable component types
Framed, frameless
Component layout method
Horizontal, vertical
Design Standards
AS/NZS 1170, DIN 1055, JIS C8955:2017, International Building Code: IBC 2009,
California Building Code:CBC 2010;
Support material
AL6005-T5 (surface anodized)
Fastener material
Zinc nickel alloy&stainless steel SUS304
Material of spare parts
AL6005-T5 (surface anodized)
Support color
Natural silver or colored according to customer requirements
System warranty
10 years
